from trase.tools.aws.aws_helpers import get_pandas_df
from trase.tools.aws.metadata import write_parquet_for_upload, write_csv_for_upload
import pandas as pd
import numpy as np
import re
pd.set_option('display.float_format', lambda x: '{:,.0f}'.format(x))
Config Session
PATH_DATASET = 'brazil/trade/bol/2025/originals/brazil_bol_2025_soy_beef.csv'
PATH_SYNACOMEX = 'brazil/trade/traders/Synacomex_2025_data.xlsx'
INTEREST_COLS = {
"DATES_LONG_HAUL_YYYYMMDD": "date",
# hs codes
"COMMODITY_HS_HS4_CODE": "hs4",
"COMMODITY_HS_HS6_CODE": "hs6",
"COMMODITY_HS_HS6_ENGLISH": "hs6_description",
"COMMODITY_HS_HS8_CODE": "hs8",
# exporters
"COMPANY_SHIPPER_CITY": "exporter_municipality_label",
"COMPANY_SHIPPER_REGISTRATION_NUMBER": "exporter_cnpj",
"COMPANY_SHIPPER_SHIPPER_NAME_DETAILED": "exporter_label",
"COMPANY_SHIPPER_STATE_NAME": "exporter_state_label",
"PLACE_AND_PORTS_POL_COUNTRY": "exporter_country_label", # Country were the shipment got loaded
# ports, country
"PLACE_AND_PORTS_POL_NAME": "port_of_export_label",
"PLACE_AND_PORTS_POD_NAME": "port_of_import_label",
"PLACE_AND_PORTS_POD_COUNTRY": "port_of_import_country_label",
"PLACE_AND_PORTS_DEST_COUNTRY": "country_of_destination_label",
# importer
"COMPANY_CONSIGNEE_CONSIGNEE_NAME_DETAILED": "importer_label",
# net_weight_kg, fob
"MEASURES_WTKG": "net_weight_kg",
"MEASURES_WTMT": "net_weight_tonnes",
"MEASURES_SECEX_FOB": "fob",
}
SOY_HS4 = {
"2304": "Soybean oilcake and other solid residue, wh/not ground",
"1208": "Soybean flour / meal (ground soy products)",
"1507": "Soya-bean oil and its fractions, whether or not refined, but not chemically modified",
"1201": "Flours and meals of oil seeds or oleaginous fruits, other than those of mustard",
}
BEEF_HS4 = {
"0102": "Live animals",
"0201": "Fresh/chilled meat",
"0202": "Frozen meat",
"0206": "Fresh/chilled/frozen offal",
"0210": "Dried/smoked/salted offal",
"1602": "Preserved meat",
}
Load Data
df = get_pandas_df(key=PATH_DATASET, sep=';')
# Select interest columns
df[INTEREST_COLS.keys()]
# Add HS4 code
df['HS4_CODE'] = df['COMMODITY_HS_HS6_ENGLISH'].apply(lambda x: x[:4])
/Users/jailsonsoares/repos/TRASE/trase/tools/aws/aws_helpers.py:397: DtypeWarning: Columns (44,68) have mixed types. Specify dtype option on import or set low_memory=False.
return pd.read_csv(body, **kwargs)
Fields intended to be numeric (e.g., MEASURES_[*]) are stored as strings and contain mixed numeric formats. For example, 1,7319026E+7, 149951,09, and 107677. This inconsistency causes issues during numeric conversion, often resulting in NaN values.
CNPJ or CPF with invalid number of digits (!= 11 or != 14)
df['cnpj'] = df['COMPANY_SHIPPER_REGISTRATION_NUMBER'].astype(str)
df[['cnpj', 'COMPANY_SHIPPER_CITY','COMPANY_SHIPPER_REGISTRATION_NUMBER','MEASURES_WTMT', 'HS4_CODE']].loc[
(df['cnpj'].str.len() != 11) &
(df['cnpj'].str.len() != 14)
]
| cnpj | COMPANY_SHIPPER_CITY | COMPANY_SHIPPER_REGISTRATION_NUMBER | MEASURES_WTMT | HS4_CODE | |
|---|---|---|---|---|---|
| 9 | 1838723023259 | RIO GRANDE | 1838723023259 | 28 | 1601 |
| 10 | 7858035000105 | SAO LEOPOLDO | 7858035000105 | 23 | 0504 |
| 11 | 3853896006857 | VARZEA GRANDE | 3853896006857 | 28 | 0202 |
| 12 | 3853896006857 | VARZEA GRANDE | 3853896006857 | 28 | 0202 |
| 13 | 3853896006857 | VARZEA GRANDE | 3853896006857 | 28 | 0202 |
| ... | ... | ... | ... | ... | ... |
| 194382 | 0 | NaN | 0 | 49,684 | 1201 |
| 194383 | 0 | NaN | 0 | 26,335 | 1201 |
| 194384 | 0 | NaN | 0 | 15,500 | 1201 |
| 194385 | 0 | NaN | 0 | 17,597 | 1201 |
| 194386 | 0 | NaN | 0 | 3,944 | 0102 |
112533 rows × 5 columns
Below we fix that by replacing comma by period and stripping
HS descriptions
df[['HS4_CODE','COMMODITY_HS_HS6_ENGLISH']].drop_duplicates().sort_values('HS4_CODE')
| HS4_CODE | COMMODITY_HS_HS6_ENGLISH | |
|---|---|---|
| 204 | 0033 | 003300 - MATERIAL AND PRODUCTS VARIOUS ... |
| 149695 | 0102 | 010290 - LIVE BOVINE ANIMALS - OTHER |
| 5767 | 0102 | 010229 - LIVE BOVINE ANIMALS - CATTLE - OTHER |
| 328 | 0102 | 010200 - LIVE BOVINE ANIMALS |
| 119531 | 0201 | 020120 - MEAT OF BOVINE ANIMALS, FRESH OR CHIL... |
| 13900 | 0201 | 020100 - MEAT OF BOVINE ANIMALS, FRESH OR CHILLED |
| 2894 | 0201 | 020130 - MEAT OF BOVINE ANIMALS, FRESH OR CHIL... |
| 2216 | 0202 | 020200 - MEAT OF BOVINE ANIMALS, FROZEN |
| 5 | 0202 | 020220 - MEAT OF BOVINE ANIMALS, FROZEN - OTHE... |
| 11 | 0202 | 020230 - MEAT OF BOVINE ANIMALS, FROZEN - BONE... |
| 686 | 0206 | 020690 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 549 | 0206 | 020621 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 15118 | 0206 | 020640 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 81 | 0206 | 020629 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 80 | 0206 | 020622 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 15 | 0206 | 020649 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 98591 | 0206 | 020610 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 126 | 0206 | 020641 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 5351 | 0206 | 020600 - EDIBLE OFFAL OF BOVINE ANIMALS, SWINE... |
| 54088 | 0207 | 020712 - MEAT AND EDIBLE OFFAL, OF THE POULTRY... |
| 79 | 0210 | 021099 - MEAT AND EDIBLE MEAT OFFAL, SALTED, I... |
| 22769 | 0210 | 021020 - MEAT AND EDIBLE MEAT OFFAL, SALTED, I... |
| 70618 | 0210 | 021019 - MEAT AND EDIBLE MEAT OFFAL, SALTED, I... |
| 10 | 0504 | 050400 - GUTS, BLADDERS AND STOMACHS OF ANIMAL... |
| 7187 | 1201 | 120190 - SOYA BEANS, WHETHER OR NOT BROKEN - O... |
| 0 | 1201 | 120110 - SOYA BEANS, WHETHER OR NOT BROKEN - SEED |
| 1 | 1201 | 120100 - SOYA BEANS, WHETHER OR NOT BROKEN |
| 1178 | 1507 | 150700 - SOYA-BEAN OIL AND ITS FRACTIONS, WHET... |
| 3268 | 1507 | 150790 - SOYA-BEAN OIL AND ITS FRACTIONS, WHET... |
| 1094 | 1507 | 150710 - SOYA-BEAN OIL AND ITS FRACTIONS, WHET... |
| 4 | 1601 | 160100 - SAUSAGES AND SIMILAR PRODUCTS, OF MEA... |
| 4379 | 1602 | 160220 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 3201 | 1602 | 160231 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 139756 | 1602 | 160210 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 278 | 1602 | 160200 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 198 | 1602 | 160232 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 66 | 1602 | 160249 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 46496 | 1602 | 160290 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 20 | 1602 | 160250 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 67538 | 1602 | 160230 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 68648 | 1602 | 160240 - OTHER PREPARED OR PRESERVED MEAT, MEA... |
| 3 | 2304 | 230400 - OIL-CAKE AND OTHER SOLID RESIDUES, WH... |
Soy exports by product
df_soy = df.loc[df['HS4_CODE'].isin(SOY_HS4.keys())]
df_soy_totals = df_soy.groupby(by=['HS4_CODE'])['MEASURES_WTKG'].sum().div(1000)
df_soy_total_fob = df_soy.groupby(by=['HS4_CODE'])['MEASURES_SECEX_FOB'].sum()
Beef exports by product
df_beef = df.loc[df['HS4_CODE'].isin(BEEF_HS4.keys())]
df_beef_totals = df_beef.groupby(by=['HS4_CODE'])['MEASURES_WTKG'].sum().div(1000)
df_beef_totals_fob = df_beef.groupby(by=['HS4_CODE'])['MEASURES_SECEX_FOB'].sum()
Comparing with SECOMEX
df_contrade = get_pandas_df(key=PATH_SYNACOMEX, xlsx=True)
df_contrade['HS4_CODE'] = df_contrade['SH4 Code'].apply(
lambda x: '0' + str(x) if len(str(x)) == 3 else str(x)
)
df_contrade['MEASURES_WTMT'] = df_contrade['2025 - Net Weight'].astype(float)
df_contrade['MEASURES_SECEX_FOB'] = df_contrade['2025 - US$ FOB'].astype(float)
df_contrade['MEASURES_WTMT'] = df_contrade['MEASURES_WTMT'].div(1000)
import matplotlib.pyplot as plt
import numpy as np
import pandas as pd
# 1. Group the reference dataset by HS4_CODE to get the total weights
# (Assuming df_contrade is already loaded and formatted as per your snippet)
comtrade_totals = df_contrade.groupby('HS4_CODE')['MEASURES_WTMT'].sum()
# ==========================================

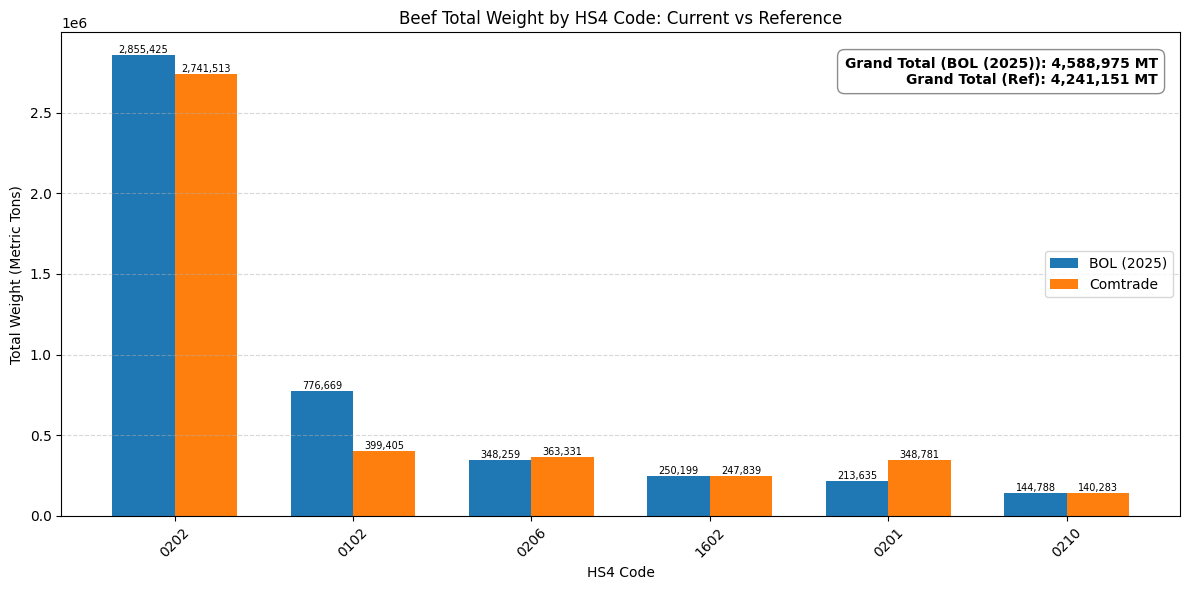

# --- Beef chart (Side-by-Side Comparison) ---
# ==========================================
# Align your data and the reference data using a DataFrame
df_beef_combined = pd.DataFrame({
'BOL (2025)': df_beef_totals,
'Comtrade (2025)': comtrade_totals
})
# Keep only the HS4 codes present in your original data, fill missing Comtrade matches with 0
df_beef_combined = df_beef_combined.loc[df_beef_totals.index].fillna(0)
# Sort by your data just like before
df_beef_combined = df_beef_combined.sort_values(by='BOL (2025)', ascending=False)
# Setup for grouped bars
x_beef = np.arange(len(df_beef_combined))
width = 0.35 # Width of the bars
fig, ax = plt.subplots(figsize=(12, 6))
bars1_beef = ax.bar(x_beef - width/2, df_beef_combined['BOL (2025)'], width, label='BOL (2025)', color='#1f77b4')
bars2_beef = ax.bar(x_beef + width/2, df_beef_combined['Comtrade (2025)'], width, label='Comtrade', color='#ff7f0e')
ax.set_title('Beef Total Weight by HS4 Code: Current vs Reference')
ax.set_xlabel('HS4 Code')
ax.set_ylabel('Total Weight (Metric Tons)')
ax.set_xticks(x_beef)
ax.set_xticklabels(df_beef_combined.index.astype(str), rotation=45)
ax.grid(axis='y', linestyle='--', alpha=0.5)
ax.legend()
# Value labels (filtering out 0s so it doesn't get visually cluttered)
for bars in [bars1_beef, bars2_beef]:
for bar in bars:
height = bar.get_height()
if height > 0:
ax.text(bar.get_x() + bar.get_width()/2., height, f'{height:,.0f}',
ha='center', va='bottom', fontsize=7)
# Update Annotation Box with both totals
beef_total_yours = df_beef_combined['BOL (2025)'].sum()
beef_total_ref = df_beef_combined['Comtrade (2025)'].sum()
text_beef = f'Grand Total (BOL (2025)): {beef_total_yours:,.0f} MT\nGrand Total (Ref): {beef_total_ref:,.0f} MT'
ax.text(0.98, 0.95, text_beef, transform=ax.transAxes,
fontsize=10, fontweight='bold', va='top', ha='right',
bbox=dict(boxstyle='round,pad=0.5', facecolor='white', alpha=0.9, edgecolor='gray'))
plt.tight_layout()
plt.show()
# ==========================================

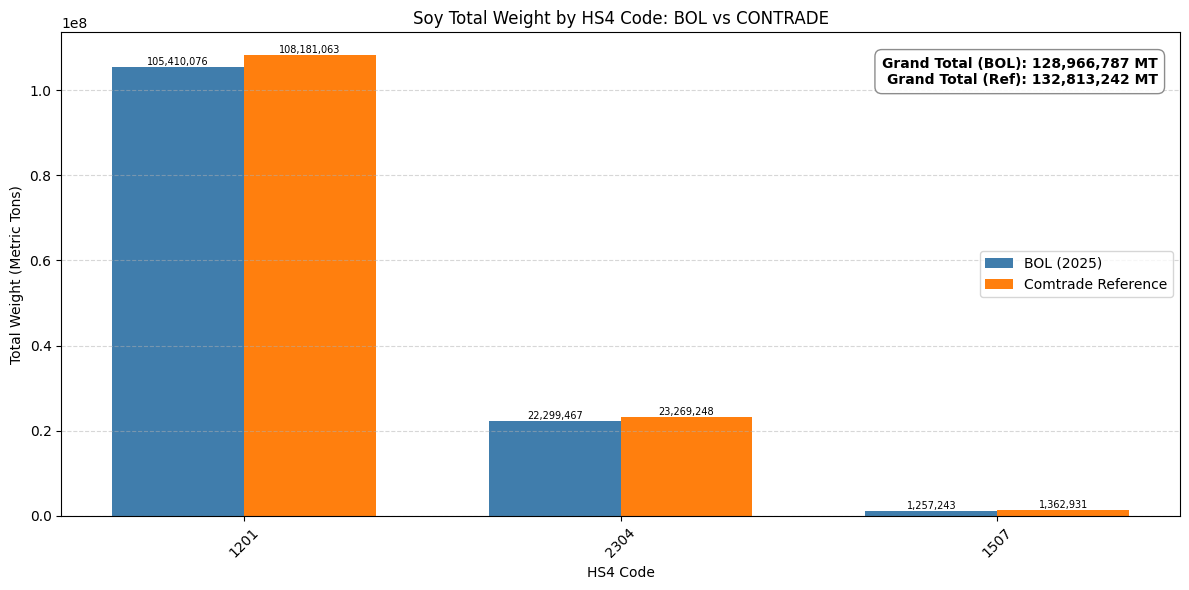

# --- Soy chart (Side-by-Side Comparison) ---
# ==========================================
# Align your data and the reference data using a DataFrame
df_soy_combined = pd.DataFrame({
'BOL (2025)': df_soy_totals,
'Comtrade (2025)': comtrade_totals
})
# Keep only the HS4 codes present in your original data, fill missing Comtrade matches with 0
df_soy_combined = df_soy_combined.loc[df_soy_totals.index].fillna(0)
# Sort by your data just like before
df_soy_combined = df_soy_combined.sort_values(by='BOL (2025)', ascending=False)
# Setup for grouped bars
x_soy = np.arange(len(df_soy_combined))
fig, ax = plt.subplots(figsize=(12, 6))
bars1_soy = ax.bar(x_soy - width/2, df_soy_combined['BOL (2025)'], width, label='BOL (2025)', color="#407dac") # Green for Soy
bars2_soy = ax.bar(x_soy + width/2, df_soy_combined['Comtrade (2025)'], width, label='Comtrade Reference', color='#ff7f0e')
ax.set_title('Soy Total Weight by HS4 Code: BOL vs CONTRADE')
ax.set_xlabel('HS4 Code')
ax.set_ylabel('Total Weight (Metric Tons)')
ax.set_xticks(x_soy)
ax.set_xticklabels(df_soy_combined.index.astype(str), rotation=45)
ax.grid(axis='y', linestyle='--', alpha=0.5)
ax.legend()
# Value labels (filtering out 0s)
for bars in [bars1_soy, bars2_soy]:
for bar in bars:
height = bar.get_height()
if height > 0:
ax.text(bar.get_x() + bar.get_width()/2., height, f'{height:,.0f}',
ha='center', va='bottom', fontsize=7)
# Update Annotation Box with both totals
soy_total_yours = df_soy_combined['BOL (2025)'].sum()
soy_total_ref = df_soy_combined['Comtrade (2025)'].sum()
text_soy = f'Grand Total (BOL): {soy_total_yours:,.0f} MT\nGrand Total (Ref): {soy_total_ref:,.0f} MT'
ax.text(0.98, 0.95, text_soy, transform=ax.transAxes,
fontsize=10, fontweight='bold', va='top', ha='right',
bbox=dict(boxstyle='round,pad=0.5', facecolor='white', alpha=0.9, edgecolor='gray'))
plt.tight_layout()
plt.show()
# ==========================

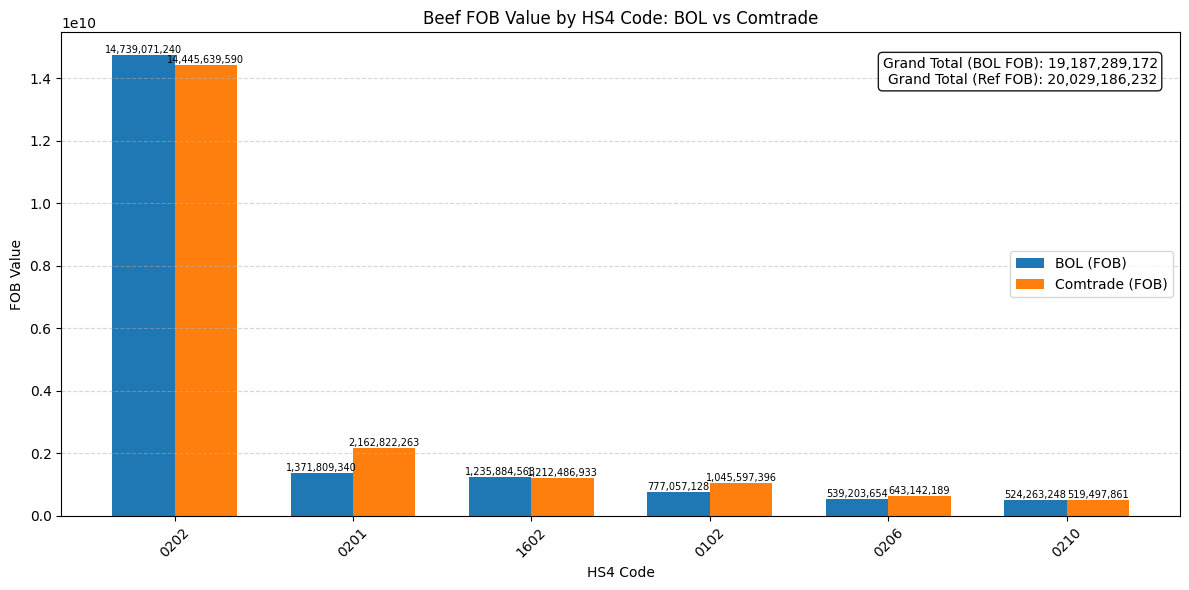

# --- Beef FOB (Side-by-Side) ---
# ==========================
df_beef_totals_fob = df_beef.groupby('HS4_CODE')['MEASURES_SECEX_FOB'].sum()
comtrade_totals_fob = df_contrade.groupby('HS4_CODE')['MEASURES_SECEX_FOB'].sum()
df_beef_combined_fob = pd.DataFrame({
'BOL (FOB)': df_beef_totals_fob,
'Comtrade (FOB)': comtrade_totals_fob
})
df_beef_combined_fob = df_beef_combined_fob.loc[df_beef_totals_fob.index].fillna(0)
df_beef_combined_fob = df_beef_combined_fob.sort_values(by='BOL (FOB)', ascending=False)
x_beef = np.arange(len(df_beef_combined_fob))
width = 0.35
fig, ax = plt.subplots(figsize=(12, 6))
bars1 = ax.bar(x_beef - width/2, df_beef_combined_fob['BOL (FOB)'], width,
label='BOL (FOB)', color='#1f77b4')
bars2 = ax.bar(x_beef + width/2, df_beef_combined_fob['Comtrade (FOB)'], width,
label='Comtrade (FOB)', color='#ff7f0e')
ax.set_title('Beef FOB Value by HS4 Code: BOL vs Comtrade')
ax.set_xlabel('HS4 Code')
ax.set_ylabel('FOB Value')
ax.set_xticks(x_beef)
ax.set_xticklabels(df_beef_combined_fob.index.astype(str), rotation=45)
ax.grid(axis='y', linestyle='--', alpha=0.5)
ax.legend()
for bars in [bars1, bars2]:
for bar in bars:
h = bar.get_height()
if h > 0:
ax.text(bar.get_x() + bar.get_width()/2, h, f'{h:,.0f}',
ha='center', va='bottom', fontsize=7)
beef_total = df_beef_combined_fob['BOL (FOB)'].sum()
beef_ref = df_beef_combined_fob['Comtrade (FOB)'].sum()
ax.text(0.98, 0.95,
f'Grand Total (BOL FOB): {beef_total:,.0f}\nGrand Total (Ref FOB): {beef_ref:,.0f}',
transform=ax.transAxes, ha='right', va='top',
bbox=dict(boxstyle='round', facecolor='white', alpha=0.9))
plt.tight_layout()
plt.show()
# ==========================

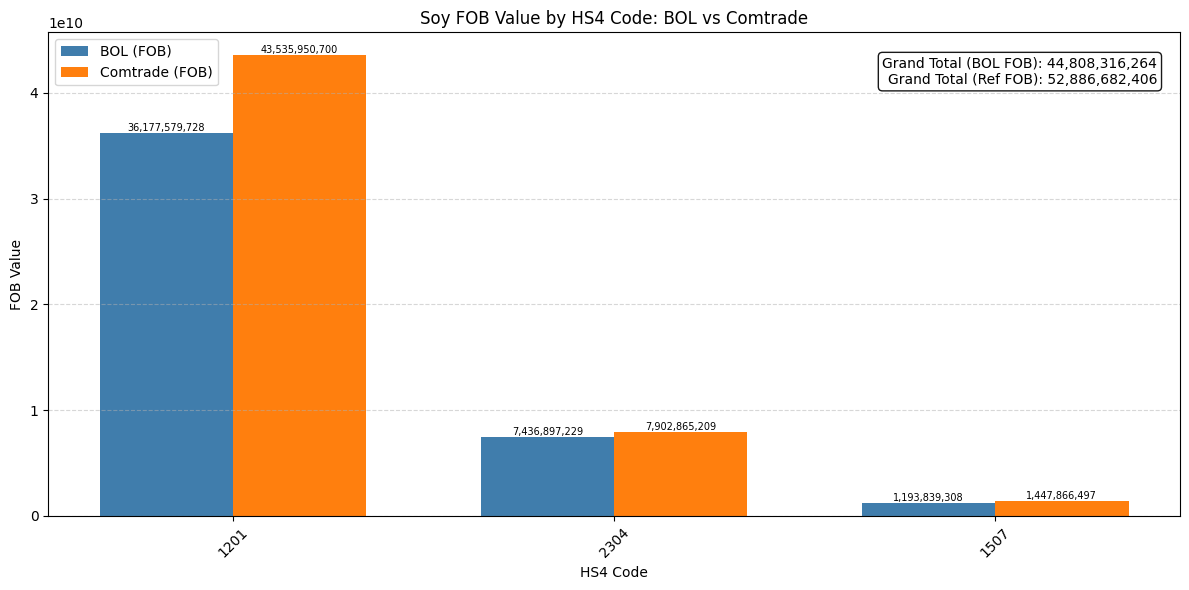

# --- Soy FOB (Side-by-Side) ---
# ==========================
df_soy_totals_fob = df_soy.groupby('HS4_CODE')['MEASURES_SECEX_FOB'].sum()
comtrade_totals_fob = df_contrade.groupby('HS4_CODE')['MEASURES_SECEX_FOB'].sum()
df_soy_combined_fob = pd.DataFrame({
'BOL (FOB)': df_soy_totals_fob,
'Comtrade (FOB)': comtrade_totals_fob
})
df_soy_combined_fob = df_soy_combined_fob.loc[df_soy_totals_fob.index].fillna(0)
df_soy_combined_fob = df_soy_combined_fob.sort_values(by='BOL (FOB)', ascending=False)
x_soy = np.arange(len(df_soy_combined_fob))
fig, ax = plt.subplots(figsize=(12, 6))
bars1 = ax.bar(x_soy - width/2, df_soy_combined_fob['BOL (FOB)'], width,
label='BOL (FOB)', color='#407dac')
bars2 = ax.bar(x_soy + width/2, df_soy_combined_fob['Comtrade (FOB)'], width,
label='Comtrade (FOB)', color='#ff7f0e')
ax.set_title('Soy FOB Value by HS4 Code: BOL vs Comtrade')
ax.set_xlabel('HS4 Code')
ax.set_ylabel('FOB Value')
ax.set_xticks(x_soy)
ax.set_xticklabels(df_soy_combined_fob.index.astype(str), rotation=45)
ax.grid(axis='y', linestyle='--', alpha=0.5)
ax.legend()
for bars in [bars1, bars2]:
for bar in bars:
h = bar.get_height()
if h > 0:
ax.text(bar.get_x() + bar.get_width()/2, h, f'{h:,.0f}',
ha='center', va='bottom', fontsize=7)
soy_total = df_soy_combined_fob['BOL (FOB)'].sum()
soy_ref = df_soy_combined_fob['Comtrade (FOB)'].sum()
ax.text(0.98, 0.95,
f'Grand Total (BOL FOB): {soy_total:,.0f}\nGrand Total (Ref FOB): {soy_ref:,.0f}',
transform=ax.transAxes, ha='right', va='top',
bbox=dict(boxstyle='round', facecolor='white', alpha=0.9))
plt.tight_layout()
plt.show()
# ==========================

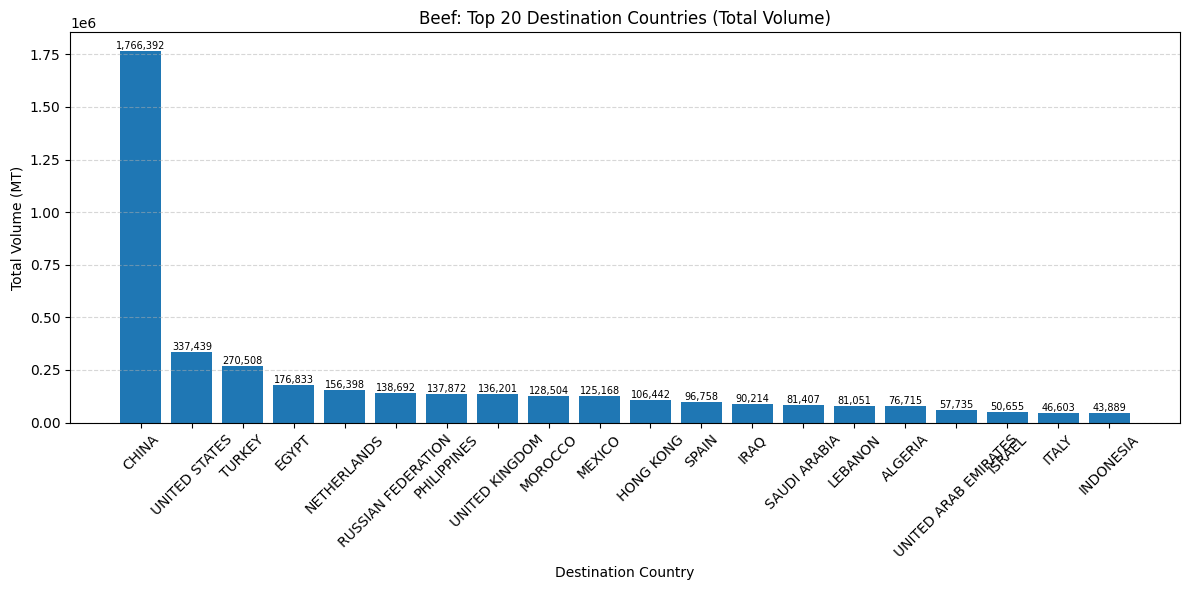

# --- Beef: Top 20 Destinations ---
# ==========================
df_beef_dest = df.loc[df['HS4_CODE'].isin(BEEF_HS4.keys())]
beef_dest_totals = (
df_beef_dest
.groupby('PLACE_AND_PORTS_DEST_COUNTRY')['MEASURES_WTMT']
.sum()
.sort_values(ascending=False)
.head(20)
)
fig, ax = plt.subplots(figsize=(12, 6))
ax.bar(beef_dest_totals.index, beef_dest_totals.values, color='#1f77b4')
ax.set_title('Beef: Top 20 Destination Countries (Total Volume)')
ax.set_xlabel('Destination Country')
ax.set_ylabel('Total Volume (MT)')
ax.tick_params(axis='x', rotation=45)
ax.grid(axis='y', linestyle='--', alpha=0.5)
# value labels
for i, v in enumerate(beef_dest_totals.values):
ax.text(i, v, f'{v:,.0f}', ha='center', va='bottom', fontsize=7)
plt.tight_layout()
plt.show()
import matplotlib.pyplot as plt
# ==========================

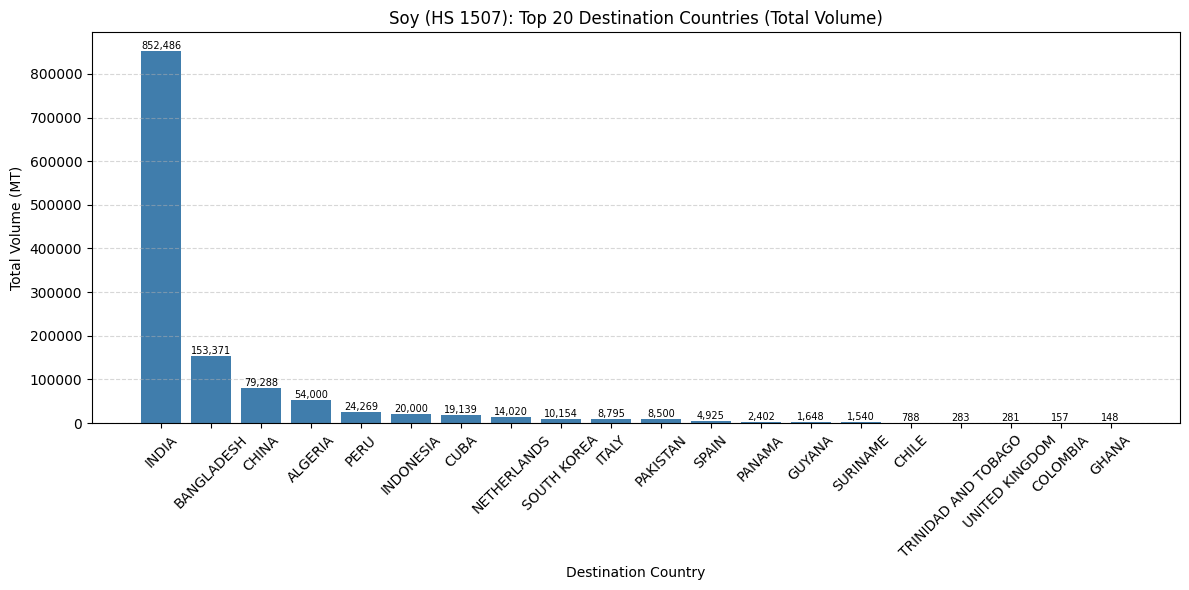

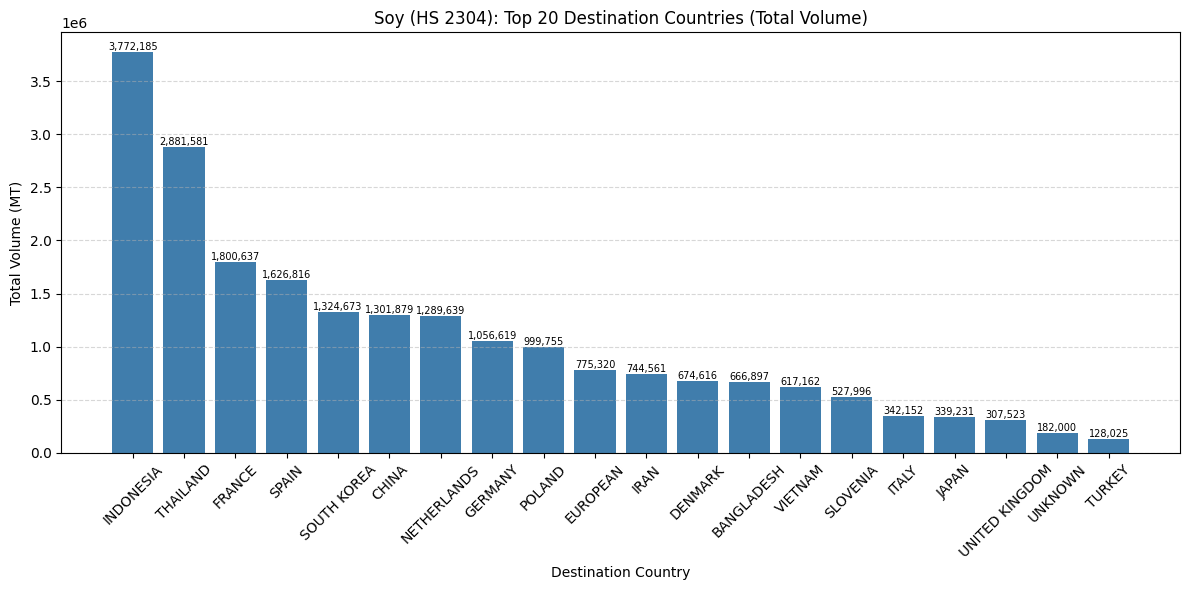

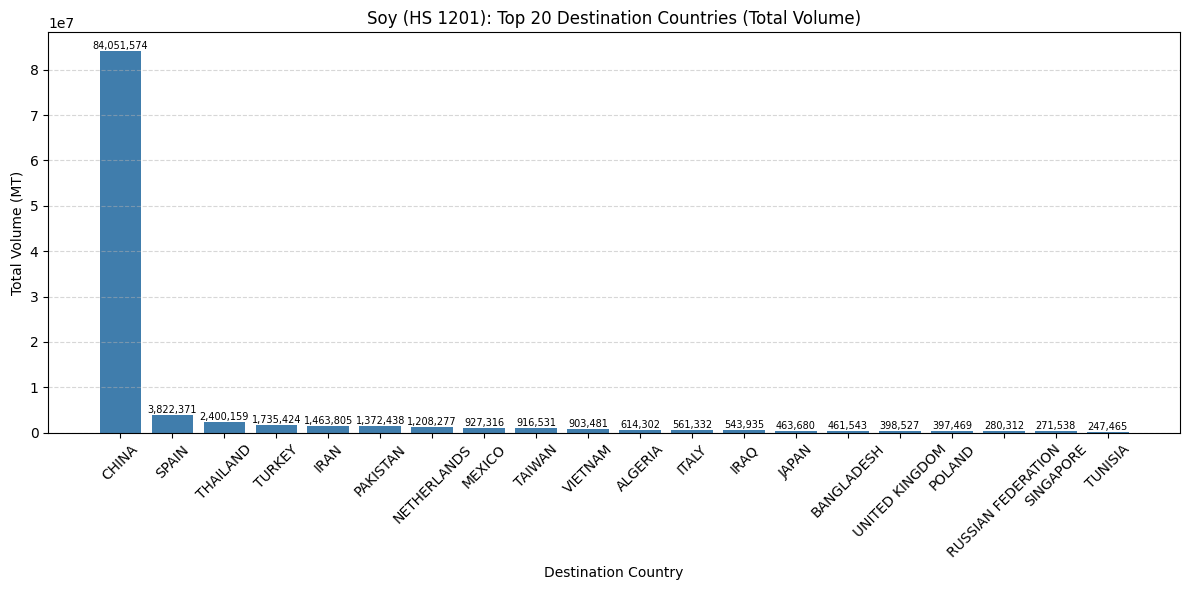

# --- Soy: Top 20 Destinations per HS Code ---
# ==========================
# Iterate over each HS code in your dictionary/list
for hs_code in SOY_HS4.keys():
# 1. Filter the DataFrame for the current HS code
df_single_hs = df[df['HS4_CODE'] == hs_code]
# Skip if there is no data for this HS code
if df_single_hs.empty:
continue
# 2. Group and aggregate data for this specific HS code
soy_dest_totals = (
df_single_hs
.groupby('PLACE_AND_PORTS_DEST_COUNTRY')['MEASURES_WTMT']
.sum()
.sort_values(ascending=False)
.head(20)
)
# 3. Create the plot
fig, ax = plt.subplots(figsize=(12, 6))
ax.bar(soy_dest_totals.index, soy_dest_totals.values, color='#407dac')
# If SOY_HS4 is a dictionary (e.g., {'1201': 'Soybeans'}), you can use the value for the title:
# hs_name = SOY_HS4[hs_code]
# ax.set_title(f'{hs_name} (HS {hs_code}): Top 20 Destination Countries (Total Volume)')
# Standard title using just the code:
ax.set_title(f'Soy (HS {hs_code}): Top 20 Destination Countries (Total Volume)')
ax.set_xlabel('Destination Country')
ax.set_ylabel('Total Volume (MT)')
ax.tick_params(axis='x', rotation=45)
ax.grid(axis='y', linestyle='--', alpha=0.5)
# 4. Add value labels
for i, v in enumerate(soy_dest_totals.values):
ax.text(i, v, f'{v:,.0f}', ha='center', va='bottom', fontsize=7)
plt.tight_layout()
plt.show()
