States and Municipalities shares in Brazil beef SEI-PCS vs MDIC

This analysis compares the evolution of the share of state and municipality production across the years, between the results of SEI-PCS v2.2.1 (excluding domestic) and the MDIC municipality export data, filtered by beef hs4 codes.

The main sources of data are:

Consolidated Brazil Beef SEI-PCS v2.2.1 results: s3://trase-storage/brazil/beef/sei_pcs/v2.2.1/post_embedding/brazil_beef_sei_pcs_v2_2_1_for_ingest_2010_2023.parquet
MDIC municipality data: s3://trase-storage/brazil/trade/mdic/municipality/brazil_mdic_municipality_{year}.[csv|parquet]

SEI-PCS vs MDIC state ranking comparison

For each dataset and year, we rank all states by volume. Then we filter to the top states and plot a line chart.

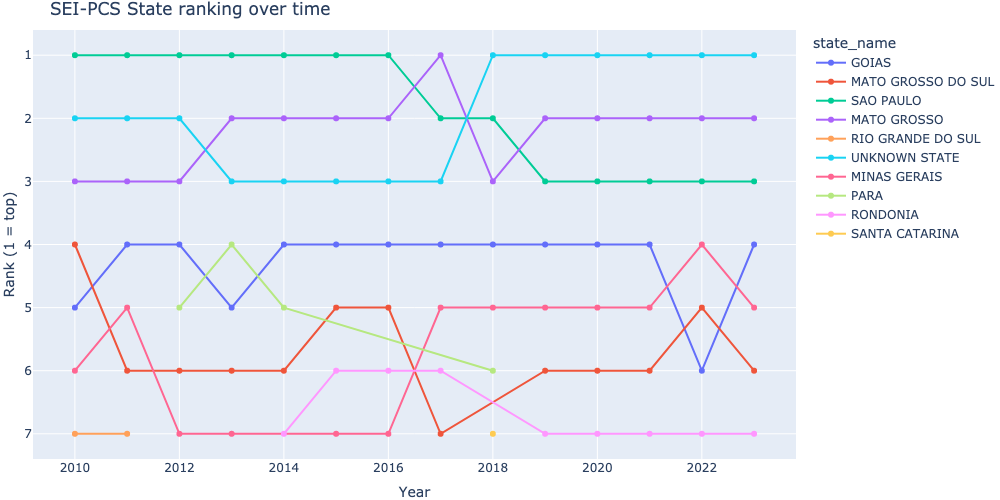

SEI-PCS Bump chart ranking states

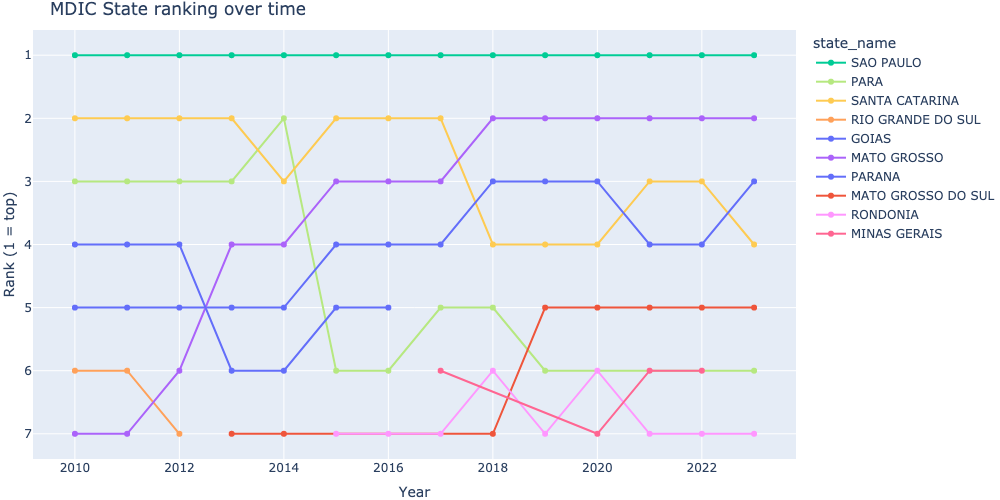

MDIC Bump chart ranking states

SEI-PCS vs MDIC Stacked bar chart — overall top states over time (by volume)

Annual volumes for the overall top states by total volume across all years (not in individual years).

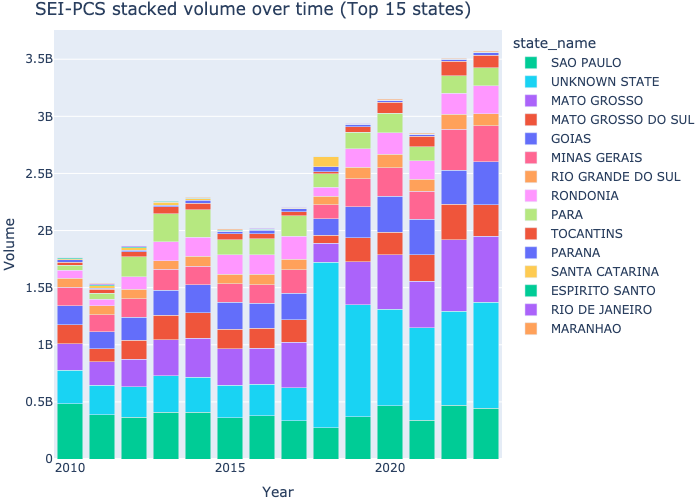

SEI-PCS Stacked bar chart — overall top states over time (by volume)

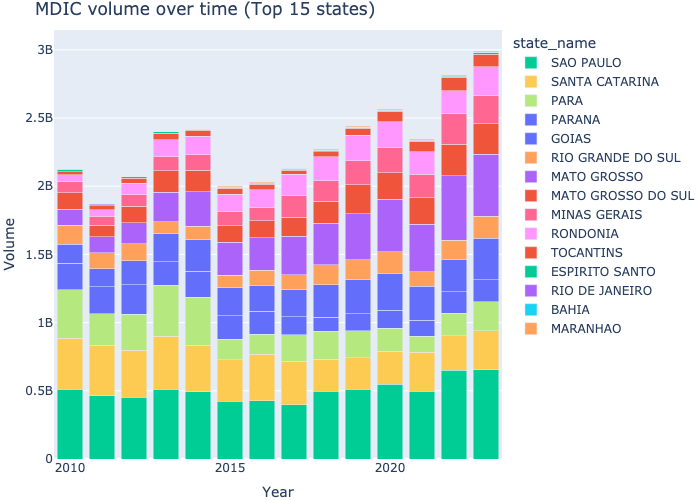

MDIC Stacked bar chart — overall top states over time (by volume)

SEI-PCS vs MDIC municipality bump chart ranking comparison

For each dataset and year, we rank all municipalities by volume. Then we filter to the top municipalities and plot a line chart.

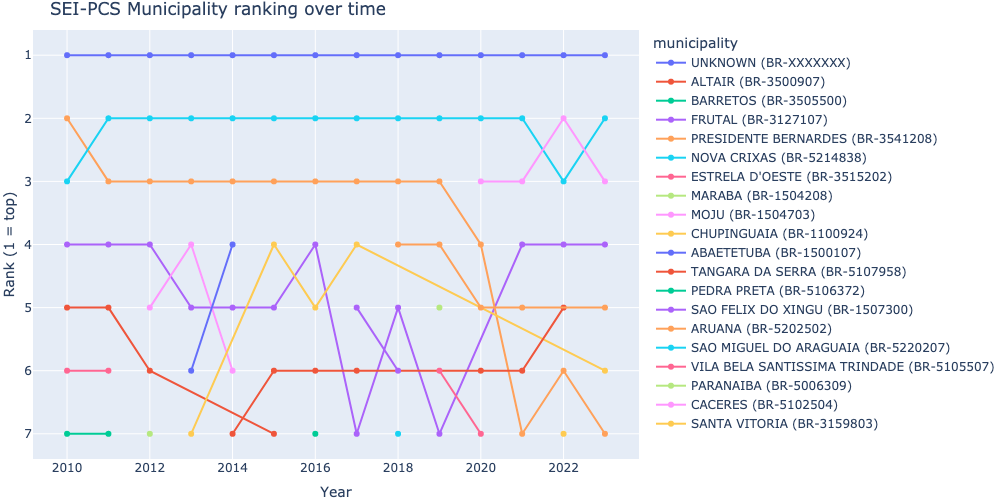

SEI-PCS Bump chart ranking municipalities

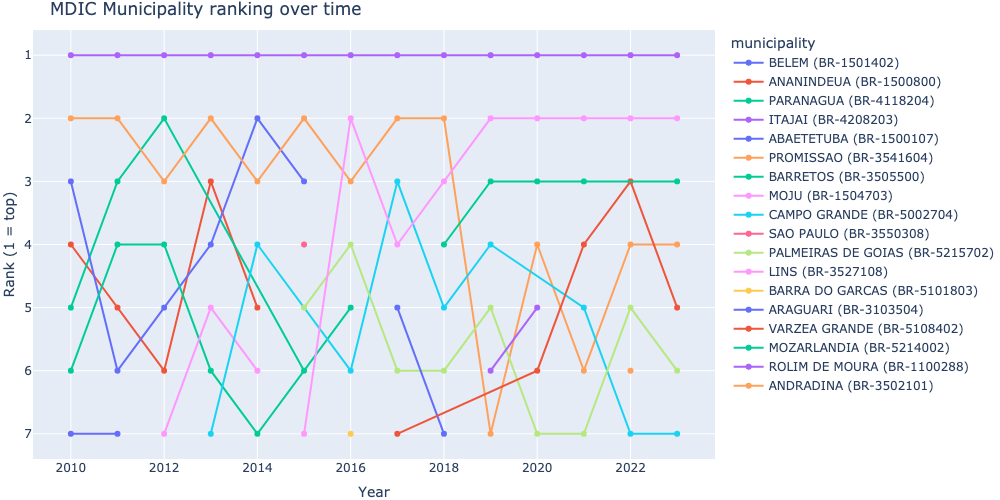

MDIC Bump chart ranking municipalities

For each year, we rank all municipalities by volume. Then we filter to the top municipalities and plot a line chart.

SEI-PCS vs MDIC Stacked bar chart — overall top municipalities over time (by volume) excluding UNKNOWNS

Annual volumes for the overall top municipalities (except unknowns) by total volume across all years (not in individual years).

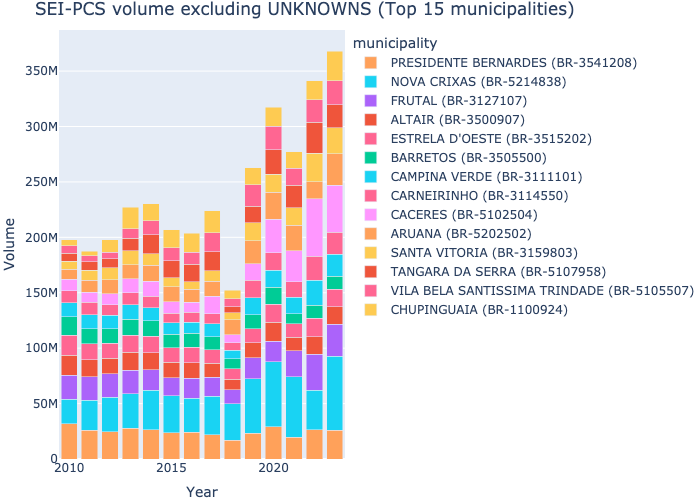

SEI-PCS Stacked bar chart — overall top municipalities over time (by volume) excluding UNKNOWNS

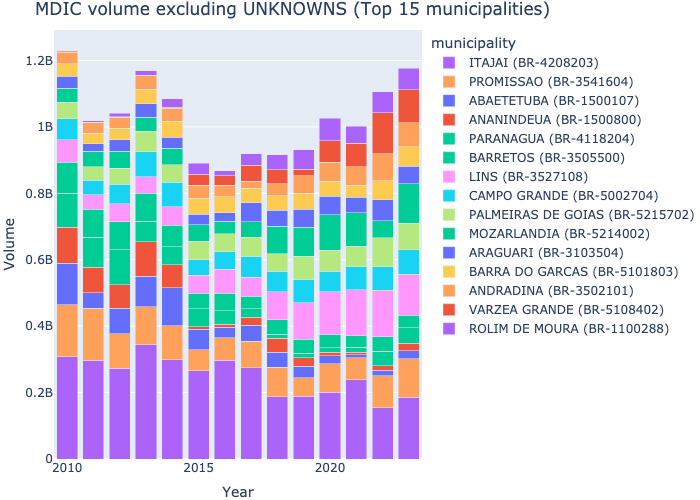

MDIC-Municipality Stacked bar chart — overall top municipalities over time (by volume) excluding UNKNOWNS

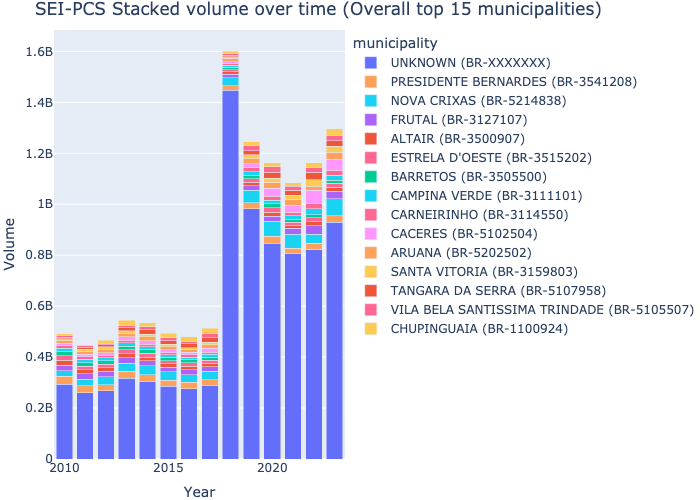

And here including UNKNOWNS.
