Qa tanzania coffee 2020
View or edit on GitHub
This page is synchronized from trase/data/tanzania/trade/y2020/qa_tanzania_coffee_2020.ipynb. Last modified on 2025-12-13 00:30 CET by Trase Admin.
Please view or edit the original file there; changes should be reflected here after a midnight build (CET time),
or manually triggering it with a GitHub action (link).
Author: Nicolás Martín (nicolas.martin@sei.org)
Date: 2024-06-26
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
sns.set(style="whitegrid")
PATHS = {
"input_silver_tanzania_coffee": "s3://trase-storage/tanzania/trade/2020/silver/silver_tanzania_coffee_2020.parquet",
"input_silver_comtrade_tanzania_coffee": "s3://trase-storage/tanzania/trade/2020/silver/silver_comtrade_tanzania_coffee_2020.parquet",
"input_gold_tanzania_coffee": "s3://trase-storage/tanzania/trade/2020/gold/gold_tanzania_coffee_2020.parquet"
}
export_data = pd.read_parquet(PATHS["input_silver_tanzania_coffee"])
comtrade_data = pd.read_parquet(PATHS["input_silver_comtrade_tanzania_coffee"])
export_data_gold = pd.read_parquet(PATHS["input_gold_tanzania_coffee"])
def modified_z_score(series):
"""
The modified z-score is useful in identifying outliers in a dataset.
It relies in the median absolute deviation (MAD) instead of the standard deviation, making it less
sensitive to outliers.
"""
median = series.median()
mad = (series - median).abs().median()
modified_z = 0.6745 * (series - median) / mad
return modified_z
Data description
- The first dataframe
sample_from_original_dfshows the fields that are being loaded from the original excel file (they are loaded based on theEXPORT_COLUMN_MAPPINGdictionary. - The second dataframe
sample_from_additional_fields_dfshows fields generated afterwards (which didn't exist in the original excel file)
EXPORT_COLUMN_MAPPING = {
"Date": "DATE",
"Month": "MONTH",
"Heading": "HEADING",
"Sub_Heading": "HS_CODE",
"Destination_Country": "COUNTRY_DESTINATION",
"Gross_Weight": "GROSS_WEIGHT",
"Net_Weight": "NET_WEIGHT",
"Item_Statistical_Value_USD": "FOB_VALUE_IN_USD",
"Item_Customs_Value_TZS": "FOB_VALUE_IN_TZS",
"Unit": "UNIT",
"Quantity": "QUANTITY",
"HS_Code_Description": "HS_CODE_DESCRIPTION",
"Product_Description": "COMMERCIAL_DESCRIPTION",
"Customs_Office_Code": "OFFICE_CODE",
"Exporter_Code": "EXPORTER_CODE",
"Exporter": "EXPORTER_NAME",
"Declarant_Code": "DECLARANT_CODE",
"Declarant_Name": "DECLARANT_NAME",
"Buyer": "BUYER_NAME",
"Port_Name": "PORT_NAME",
"HS_Code": "HS_CODE_ORIGINAL",
"Chapter": "CHAPTER",
"TANSAD_SERIAL_NO": "TANSAD_SERIAL_NUMBER",
"TANSAD_NO": "TANSAD_NUMBER",
"S_N": "SERIAL_NUMBER",
"Processing_Status_Name": "PROCESSING_STATUS_NAME",
"Origin_county": "ORIGIN_COUNTRY",
"Consignment_Country": "CONSIGNMENT_COUNTRY",
"Trading_country": "TRADING_COUNTRY",
"Bill_No": "BILL_NUMBER",
"Container_YN": "CONTAINER_YN",
"Total_Container_No": "TOTAL_CONTAINER_NO",
"Transport_Means_ID": "TRANSPORT_MEANS_ID",
"Transport_Nationality_Code": "TRANSPORT_NATIONALITY_CODE",
"Arrival_Day": "ARRIVAL_DAY",
"Discharge_Day": "DISCHARGE_DAY",
"Entry_Office_Code": "ENTRY_OFFICE_CODE",
"Transport_Mode_Code": "TRANSPORT_MODE_CODE",
"Exchange_Rate": "EXCHANGE_RATE",
"Item_Invoice_Amount_in_FC": "ITEM_INVOICE_AMOUNT_IN_FC",
"Invoice_Currency": "INVOICE_CURRENCY",
"Declared_Customs_Value_TZS": "DECLARED_CUSTOMS_VALUE_TZS",
"Assessed_Customs_Value_TZS": "ASSESSED_CUSTOMS_VALUE_TZS",
}
data_mapped = []
data_unmapped = []
unmapped_fields = [field for field in export_data_gold.columns if field not in EXPORT_COLUMN_MAPPING.values()]
for origin_field, destination_field in EXPORT_COLUMN_MAPPING.items():
field_type = export_data_gold[destination_field].dtype
# Get 3 sample values, convert to string to handle any data type gracefully
sample_values = export_data_gold[destination_field].sample(3, random_state=1).astype(str).tolist()
data_mapped.append([origin_field, destination_field, field_type, ', '.join(sample_values)])
sample_from_original_df = pd.DataFrame(data_mapped, columns=['Origin Field', 'Destination Field', 'Field Type', '3 Sample Values'])
# Iterate through the unmapped fields
for field in unmapped_fields:
field_type = str(export_data_gold[field].dtype)
sample_values = export_data_gold[field].sample(3, random_state=1).astype(str).tolist()
data_unmapped.append([field, field_type, ', '.join(sample_values)])
sample_from_additional_fields_df = pd.DataFrame(data_unmapped, columns=['Additional Field Name', 'Field Type', '3 Sample Values'])
sample_from_original_df
| Origin Field | Destination Field | Field Type | 3 Sample Values | |
|---|---|---|---|---|
| 0 | Date | DATE | datetime64[ns] | 2020-11-01, 2020-11-01, 2020-02-05 |
| 1 | Month | MONTH | Int64 | 11, 11, 2 |
| 2 | Heading | HEADING | Int64 | 901, 901, 901 |
| 3 | Sub_Heading | HS_CODE | object | 090111, 090111, 090111 |
| 4 | Destination_Country | COUNTRY_DESTINATION | object | GERMANY, JAPAN, ISRAEL |
| 5 | Gross_Weight | GROSS_WEIGHT | Float64 | 12264.0, 39104.0, 38400.0 |
| 6 | Net_Weight | NET_WEIGHT | Float64 | 12264.0, 38400.0, 38400.0 |
| 7 | Item_Statistical_Value_USD | FOB_VALUE_IN_USD | Float64 | 39965.92, 106659.84, 105216.0 |
| 8 | Item_Customs_Value_TZS | FOB_VALUE_IN_TZS | Float64 | 91372380.35, 243850792.55, 239687256.19 |
| 9 | Unit | UNIT | string | KGM, KGM, KGM |
| 10 | Quantity | QUANTITY | Float64 | 12264.0, 38400.0, 38400.0 |
| 11 | HS_Code_Description | HS_CODE_DESCRIPTION | string | Not decaffeinated, Not decaffeinated, Not deca... |
| 12 | Product_Description | COMMERCIAL_DESCRIPTION | string | 6 BULK BAGS OF ARABICA COFFEE AA/AB RA CERTIFI... |
| 13 | Customs_Office_Code | OFFICE_CODE | string | TZDL, TZDL, TZDL |
| 14 | Exporter_Code | EXPORTER_CODE | Int64 | 140277002, 110669011, 100127776 |
| 15 | Exporter | EXPORTER_NAME | object | UMOJA ULULU AGRICULTURAL AND MARKETING COOPERA... |
| 16 | Declarant_Code | DECLARANT_CODE | Int64 | 134787716, 100146487, 100324148 |
| 17 | Declarant_Name | DECLARANT_NAME | string | WOTTA LOGISTIC COMPANY LIMITED, UNITED YOUTH S... |
| 18 | Buyer | BUYER_NAME | string | TCHIBO GMBH,UEBERSEERING 18,, MC AGRI ALLIANCE... |
| 19 | Port_Name | PORT_NAME | string | DAR CUSTOMS SERVICE CENTRE, DAR CUSTOMS SERVIC... |
| 20 | HS_Code | HS_CODE_ORIGINAL | Int64 | 90111000000, 90111000000, 90111000000 |
| 21 | Chapter | CHAPTER | Int64 | 9, 9, 9 |
| 22 | TANSAD_SERIAL_NO | TANSAD_SERIAL_NUMBER | Int64 | 1385847, 1389073, 1046254 |
| 23 | TANSAD_NO | TANSAD_NUMBER | string | TZDL-20-1385847, TZDL-20-1389073, TZDL-20-1046254 |
| 24 | S_N | SERIAL_NUMBER | Int64 | 216040, 216845, 206999 |
| 25 | Processing_Status_Name | PROCESSING_STATUS_NAME | string | Released, Released, Exited |
| 26 | Origin_county | ORIGIN_COUNTRY | string | United Republic of Tanzania, United Republic o... |
| 27 | Consignment_Country | CONSIGNMENT_COUNTRY | string | United Republic of Tanzania, Japan, United Rep... |
| 28 | Trading_country | TRADING_COUNTRY | string | United Republic of Tanzania, Japan, United Rep... |
| 29 | Bill_No | BILL_NUMBER | object | 574990, 206137777, nan |
| 30 | Container_YN | CONTAINER_YN | string | N, Y, Y |
| 31 | Total_Container_No | TOTAL_CONTAINER_NO | Int64 | 0, 2, 2 |
| 32 | Transport_Means_ID | TRANSPORT_MEANS_ID | string | <NA>, <NA>, <NA> |
| 33 | Transport_Nationality_Code | TRANSPORT_NATIONALITY_CODE | string | TZ, JP, TZ |
| 34 | Arrival_Day | ARRIVAL_DAY | Int64 | <NA>, <NA>, <NA> |
| 35 | Discharge_Day | DISCHARGE_DAY | Int64 | <NA>, <NA>, <NA> |
| 36 | Entry_Office_Code | ENTRY_OFFICE_CODE | string | TZDW, TZDW, TZDW |
| 37 | Transport_Mode_Code | TRANSPORT_MODE_CODE | Int64 | 1, 1, 1 |
| 38 | Exchange_Rate | EXCHANGE_RATE | Float64 | 2286.2574, 2286.2475, 2278.0495 |
| 39 | Item_Invoice_Amount_in_FC | ITEM_INVOICE_AMOUNT_IN_FC | Float64 | 39965.92, 106659.84, 105216.0 |
| 40 | Invoice_Currency | INVOICE_CURRENCY | string | USD, USD, USD |
| 41 | Declared_Customs_Value_TZS | DECLARED_CUSTOMS_VALUE_TZS | Float64 | 91372380.348, 243850792.55, 239687256.192 |
| 42 | Assessed_Customs_Value_TZS | ASSESSED_CUSTOMS_VALUE_TZS | Float64 | 91372380.348, 243850792.55, 239687256.192 |
sample_from_additional_fields_df
| Additional Field Name | Field Type | 3 Sample Values | |
|---|---|---|---|
| 0 | YEAR | int64 | 2020, 2020, 2020 |
| 1 | DAY | int64 | 1, 1, 5 |
| 2 | EXPORTER_NAME_ORIGINAL | string | UMOJA ULULU AGRICULTURAL AND MARKETING COOPERA... |
| 3 | EXPORTER_ID | int64 | 15596538, 15596352, 15596349 |
| 4 | EXPORTER_GROUP | object | UMOJA ULULU AGRICULTURAL AND MARKETING COOPERA... |
| 5 | trase_id | object | TZ-TRADER-140277002, TZ-TRADER-110669011, TZ-T... |
| 6 | tzs_per_usd | Float64 | 2286.2574000548466, 2286.24749999625, 2278.049... |
| 7 | exchangerate_z_score | Float64 | 4.998933574280233e-06, -0.6744982694724116, -1... |
| 8 | usd_per_kg | Float64 | 3.2587997390737113, 2.7776, 2.74 |

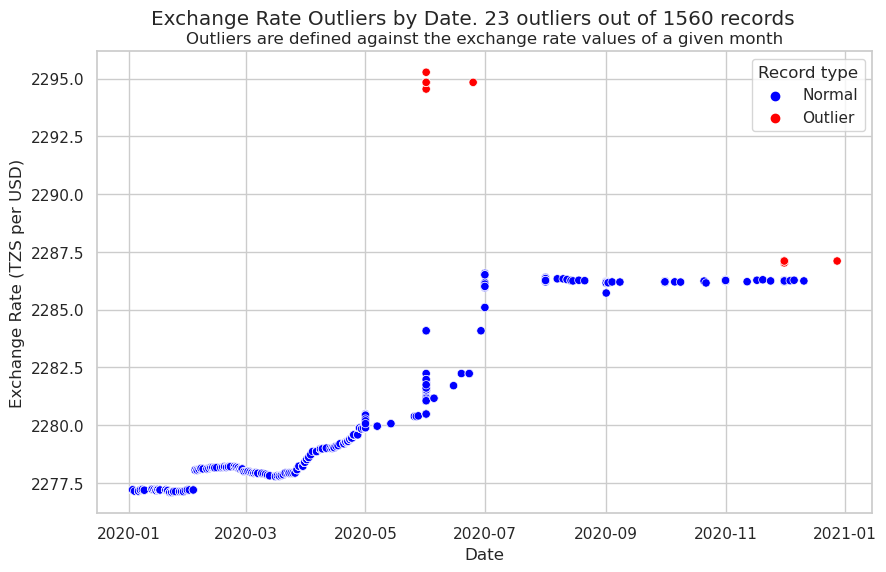

Checking TZS - USD exchange rate outliers
- 23 outliers where identified through a
modified z-scoreusing as reference the exchange rate values of a given month. - The value for those outliers was replaced by the mean of the exchange rate of that month, excluding those outliers from the calculation of the mean.
# Calculate the exchange rates in TZS per USD
export_data["tzs_per_usd"] = (
export_data["FOB_VALUE_IN_TZS"] / export_data["FOB_VALUE_IN_USD"]
)
record_count = len(export_data)
# get the modified z score within each month
for month in export_data["MONTH"].unique():
export_data.loc[
export_data["MONTH"] == month, "exchangerate_z_score"
] = modified_z_score(export_data[export_data["MONTH"] == month]["tzs_per_usd"])
# Get the mean of the exchange rate for each month, excluding the outliers
# Defining outliers as z-scores greater than 5
exchange_rate_mean = {}
for month in export_data["MONTH"].unique():
exchange_rate_mean[month] = export_data[
(export_data["MONTH"] == month)
& (export_data["exchangerate_z_score"].abs() <= 5)
]["tzs_per_usd"].mean()
# Create a new column for color-coding the data
export_data['Outlier'] = 'Normal' # Creates a new column and sets all values to 'Normal'
export_data.loc[export_data['exchangerate_z_score'] > 5, 'Outlier'] = 'Outlier' # Only modifies rows where the condition is True
outlier_count = len(export_data[export_data['exchangerate_z_score'] > 5])
plt.figure(figsize=(10, 6))
scatter_plot = sns.scatterplot(x='DATE', y='tzs_per_usd', hue='Outlier',
palette={'Normal': 'blue', 'Outlier': 'red'},
data=export_data)
scatter_plot.set(xlabel='Date', ylabel='Exchange Rate (TZS per USD)')
plt.suptitle(f"Exchange Rate Outliers by Date. {outlier_count} outliers out of {record_count} records", y=0.95)
plt.title(f"Outliers are defined against the exchange rate values of a given month")
plt.legend(title='Record type')
plt.show()
export_data.drop('Outlier', axis=1, inplace=True)

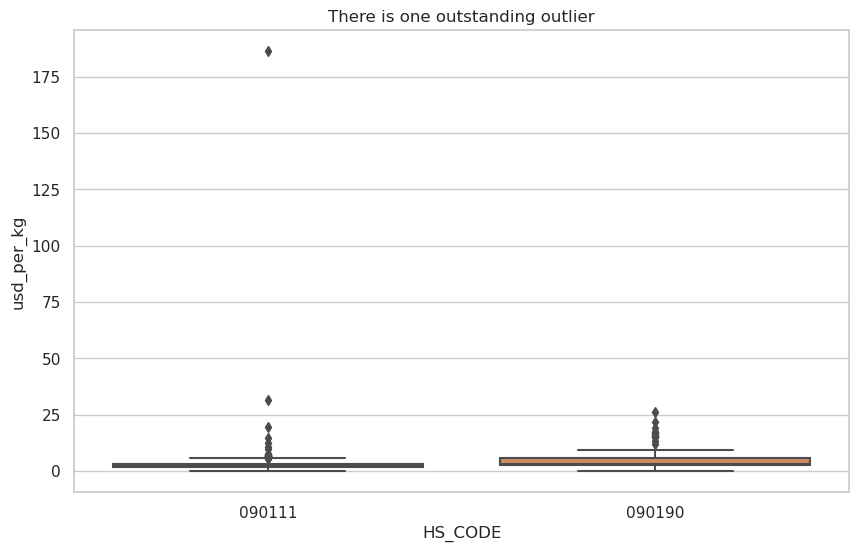

Checking cost per kg outliers
- There is 1 clear outlier
# Calculate the cost per net weight in USD, and do a boxplot
export_data["usd_per_kg"] = export_data["FOB_VALUE_IN_USD"] / export_data["NET_WEIGHT"]
# Do a boxplot of usd_per_kg
plt.figure(figsize=(10, 6))
sns.boxplot(x='HS_CODE', y='usd_per_kg', data=export_data)
plt.title("There is one outstanding outlier")
plt.show()

print("Outlier details:")
export_data[export_data['usd_per_kg'] > 50]
Outlier details:
| DATE | MONTH | HEADING | HS_CODE | COUNTRY_DESTINATION | GROSS_WEIGHT | NET_WEIGHT | FOB_VALUE_IN_USD | FOB_VALUE_IN_TZS | UNIT | ... | DECLARED_CUSTOMS_VALUE_TZS | ASSESSED_CUSTOMS_VALUE_TZS | YEAR | DAY | EXPORTER_NAME_ORIGINAL | EXPORTER_ID | EXPORTER_GROUP | tzs_per_usd | exchangerate_z_score | usd_per_kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1055 | 2020-10-01 | 10 | 901 | 090111 | CHINA (MAINLAND) | 3600.0 | 3600.0 | 670680.0 | 1533320554.1 | KGM | ... | 1533320554.1 | 1533320554.1 | 2020 | 1 | TAYLOR WINCH (TANZANIA) LTD | 15596376 | TAYLOR WINCH (TANZANIA) LTD | 2286.2178 | 0.674503 | 186.3 |
1 rows × 51 columns
We replace the outlier by the mean of non-outliers going to China, and zoom again in the values, by HS_CODE
# Replacing this outlier by the mean of the non-outliers going to China
china_non_outliers_mean = export_data[
(export_data["usd_per_kg"] < 50) & (export_data["COUNTRY_DESTINATION"] == "CHINA")
]["usd_per_kg"].mean()
export_data.loc[export_data["usd_per_kg"] > 50, "usd_per_kg"] = china_non_outliers_mean

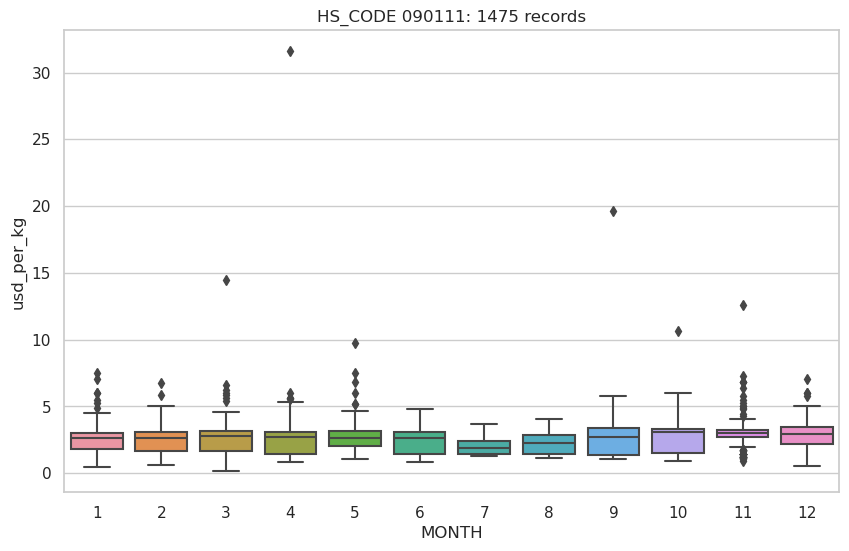

# Show a boxplot of HS_CODE 090111, by month; and another one of 090190
hs_code_1_count = len(export_data[export_data["HS_CODE"] == "090111"])
plt.figure(figsize=(10, 6))
sns.boxplot(x='MONTH', y='usd_per_kg', data=export_data[export_data["HS_CODE"] == "090111"])
plt.title(f"HS_CODE 090111: {hs_code_1_count} records")
plt.show()
plt.figure(figsize=(10, 6))
hs_code_2_count = len(export_data[export_data["HS_CODE"] == "090190"])
sns.boxplot(x='MONTH', y='usd_per_kg', data=export_data[export_data["HS_CODE"] == "090190"])
plt.title(f"HS_CODE 090190: {hs_code_2_count} records")
plt.show()

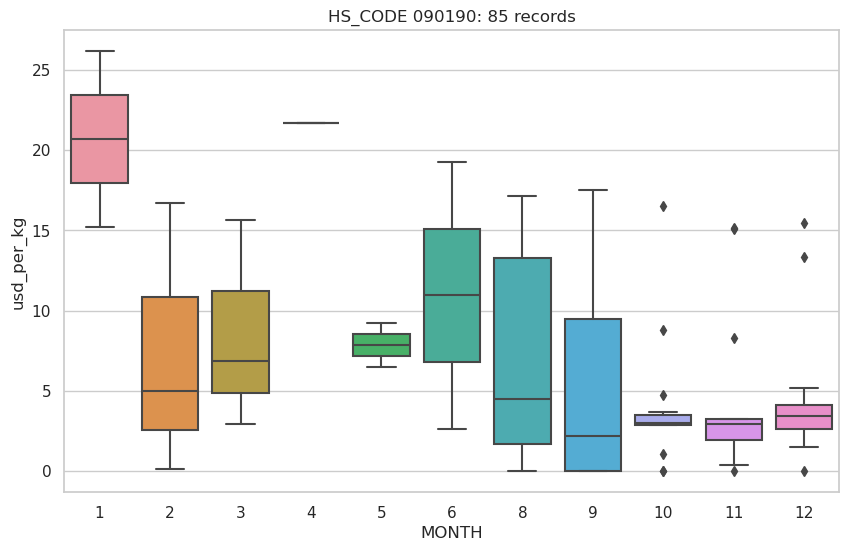

For HS_CODE 090190 there doesn't seem to be much to do about the data.
For 090111 , will take a look at the records that are above 10 usd_per_kg (about double of the maximum in the boxplot)
outlier_review = export_data[(export_data["HS_CODE"] == "090111") & (export_data['usd_per_kg'] > 10)]
outlier_review
| DATE | MONTH | HEADING | HS_CODE | COUNTRY_DESTINATION | GROSS_WEIGHT | NET_WEIGHT | FOB_VALUE_IN_USD | FOB_VALUE_IN_TZS | UNIT | ... | DECLARED_CUSTOMS_VALUE_TZS | ASSESSED_CUSTOMS_VALUE_TZS | YEAR | DAY | EXPORTER_NAME_ORIGINAL | EXPORTER_ID | EXPORTER_GROUP | tzs_per_usd | exchangerate_z_score | usd_per_kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 2020-03-21 | 3 | 901 | 090111 | BELGIUM | 194670.0 | 194400.0 | 2818800.0 | 6421003151.04 | KGM | ... | 6421003151.04 | 6421003151.04 | 2020 | 21 | DRK GENERAL MERCHANTS LTD | 15596424 | DRK GENERAL MERCHANTS LTD | 2277.9208 | -0.0 | 14.5 |
| 593 | 2020-04-23 | 4 | 901 | 090111 | JAPAN | 18330.0 | 1800.0 | 56880.0 | 129650918.26 | KGM | ... | 129650918.256 | 129650918.256 | 2020 | 23 | DORMAN (TANZANIA) LIMITED | 15596349 | DORMAN (TANZANIA) LIMITED | 2279.3762 | 0.879783 | 31.6 |
| 838 | 2020-09-01 | 9 | 901 | 090111 | GERMANY | 122.0 | 122.0 | 2400.0 | 5486856.0 | KGM | ... | 5486856.0 | 5486856.0 | 2020 | 1 | NGILA ESTATE LIMITED | 15596439 | NGILA ESTATE LIMITED | 2286.19 | 0.803803 | 19.672131 |
| 967 | 2020-10-01 | 10 | 901 | 090111 | GERMANY | 248.0 | 248.0 | 2640.0 | 6035562.72 | KGM | ... | 6035562.72 | 6035562.72 | 2020 | 1 | BLUE MOUNTAIN COFFEE FARMS LIMITED | 15596517 | BLUE MOUNTAIN COFFEE FARMS LIMITED | 2286.198 | 0.0 | 10.645161 |
| 1357 | 2020-11-24 | 11 | 901 | 090111 | MOZAMBIQUE | 13464.0 | 13464.0 | 169803.48 | 388211100.59 | KGM | ... | 388211100.59 | 388211100.59 | 2020 | 24 | AFRI TEA AND COFFEE BLENDERS (1963) LIMITED | 15596415 | AFRI TEA AND COFFEE BLENDERS (1963) LIMITED | 2286.2376 | -1.348996 | 12.611667 |
5 rows × 51 columns
They seem to be special coffees, mainly exported through airport, so they might not be an issue. Will continue check with Comtrade.
Review against Comtrade
# Check the cost per kg in comtrade
comtrade_data["usd_per_kg"] = (
comtrade_data["comtrade_usd"] / comtrade_data["comtrade_kg"]
)
# For export_data, group by 'HS_CODE' and sum the 'NET_WEIGHT' and 'FOB_VALUE_IN_USD'
export_data_aggregated = export_data.groupby("HS_CODE").agg(
tot_kg=("NET_WEIGHT", "sum"), tot_usd=("FOB_VALUE_IN_USD", "sum")
)
hs_codes = export_data_aggregated.index.to_series()
# For comtrade_data, group by the 'HS_CODE's from export_data_aggregated and sum the 'comtrade_kg' and 'comtrade_usd'
comtrade_data_aggregated = (
comtrade_data[comtrade_data["HS_CODE"].isin(hs_codes)]
.groupby("HS_CODE")
.agg(comtrade_kg=("comtrade_kg", "sum"), comtrade_usd=("comtrade_usd", "sum"))
)
# Join the aggregated comtrade data to the export data
comtrade_export_comparison = export_data_aggregated.join(comtrade_data_aggregated)
comtrade_export_comparison.reset_index(inplace=True)
# Add a 'ratio_kg' and 'ratio_us' to compare the total kg and usd between the two datasets
comtrade_export_comparison["ratio_kg"] = (
comtrade_export_comparison["tot_kg"] / comtrade_export_comparison["comtrade_kg"]
)
comtrade_export_comparison["ratio_usd"] = (
comtrade_export_comparison["tot_usd"] / comtrade_export_comparison["comtrade_usd"]
)
comtrade_export_comparison
| HS_CODE | tot_kg | tot_usd | comtrade_kg | comtrade_usd | ratio_kg | ratio_usd | |
|---|---|---|---|---|---|---|---|
| 0 | 090111 | 60689267.0 | 138377667.72 | 64000237.8 | 145208327.54 | 0.948266 | 0.95296 |
| 1 | 090190 | 1665690.15 | 4268799.49 | 5343800.992 | 4518418.0 | 0.311705 | 0.944755 |
The 'ratio_kg' for '090190' seems off.. checking the data per country
export_data_per_country = export_data.groupby(["HS_CODE", "COUNTRY_DESTINATION"]).agg(
tot_kg=("NET_WEIGHT", "sum"), tot_usd=("FOB_VALUE_IN_USD", "sum")
)
comtrade_data_per_country = (
comtrade_data[comtrade_data["HS_CODE"].isin(hs_codes)]
.groupby(["HS_CODE", "COUNTRY_DESTINATION"])
.agg(comtrade_kg=("comtrade_kg", "sum"), comtrade_usd=("comtrade_usd", "sum"))
)
# Join the aggregated per country comtrade data to the export data
comtrade_export_comparison_per_country = export_data_per_country.join(
comtrade_data_per_country
)
comtrade_export_comparison_per_country.reset_index(inplace=True)
# Add a 'ratio_kg' and 'ratio_us' to compare the total kg and usd between the two datasets
comtrade_export_comparison_per_country["ratio_kg"] = (
comtrade_export_comparison_per_country["tot_kg"]
/ comtrade_export_comparison_per_country["comtrade_kg"]
)
comtrade_export_comparison_per_country["ratio_usd"] = (
comtrade_export_comparison_per_country["tot_usd"]
/ comtrade_export_comparison_per_country["comtrade_usd"]
)
Ratios for HS_CODE 090111 seem ok
# Graph the top 10 countries with lower ratio_kg
# For HS_CODE '090111'
top_10_countries_low_ratio_kg = (
comtrade_export_comparison_per_country[
comtrade_export_comparison_per_country["HS_CODE"] == "090111"
]
.sort_values(by="ratio_kg")
.head(10)
)
top_10_countries_low_ratio_usd = (
comtrade_export_comparison_per_country[
comtrade_export_comparison_per_country["HS_CODE"] == "090111"
]
.sort_values(by="ratio_usd")
.head(10)
)
plt.figure(figsize=(10, 6))
sns.barplot(data=top_10_countries_low_ratio_kg, x="COUNTRY_DESTINATION", y="ratio_kg")
plt.xticks(rotation=45) # Rotate labels to avoid overlap

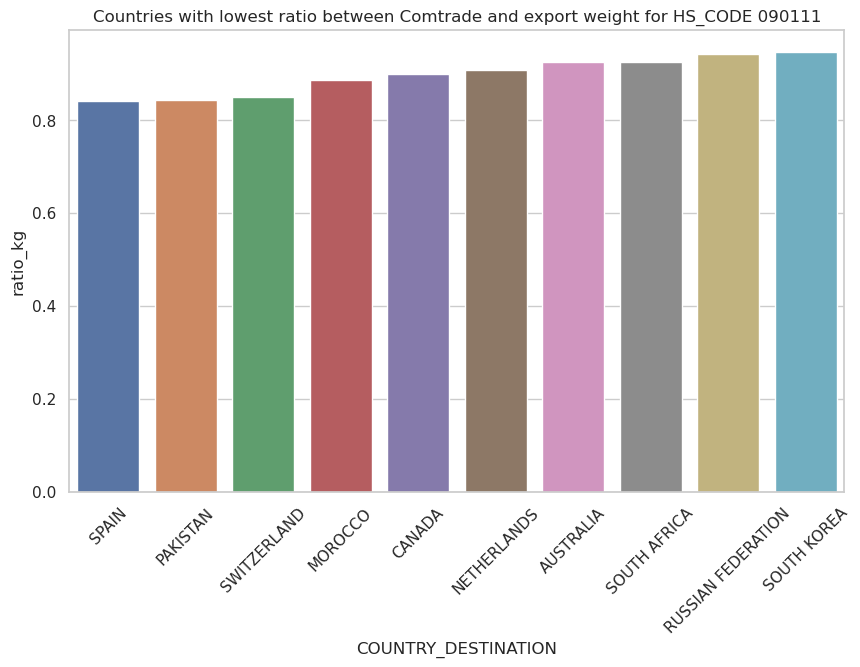

plt.title(f"Countries with lowest ratio between Comtrade and export weight for HS_CODE 090111")
plt.show()
plt.figure(figsize=(10, 6))
sns.barplot(data=top_10_countries_low_ratio_usd, x="COUNTRY_DESTINATION", y="ratio_usd")
plt.xticks(rotation=45) # Rotate labels to avoid overlap

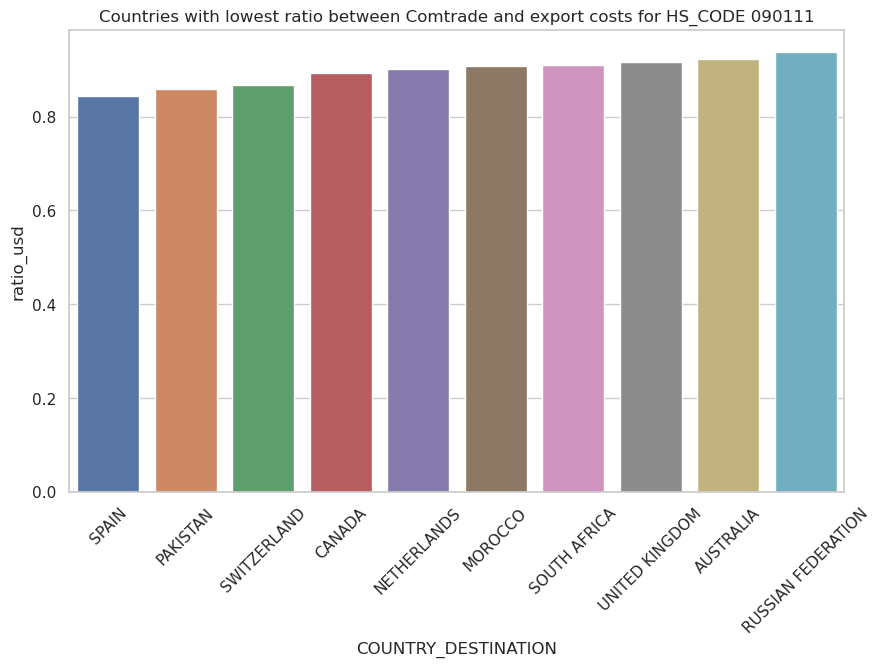

plt.title(f"Countries with lowest ratio between Comtrade and export costs for HS_CODE 090111")
plt.show()


The values for Australia and Uganda for HS CODE 090190 seem off
# For HS_CODE '090190'
top_10_countries_low_ratio_kg2 = (
comtrade_export_comparison_per_country[
comtrade_export_comparison_per_country["HS_CODE"] == "090190"
]
.sort_values(by="ratio_kg")
.head(10)
)
# For HS_CODE '090111'
top_10_countries_low_ratio_usd2 = (
comtrade_export_comparison_per_country[
comtrade_export_comparison_per_country["HS_CODE"] == "090190"
]
.sort_values(by="ratio_usd")
.head(10)
)
plt.figure(figsize=(10, 6))
sns.barplot(data=top_10_countries_low_ratio_kg2, x="COUNTRY_DESTINATION", y="ratio_kg")
plt.xticks(rotation=45) # Rotate labels to avoid overlap

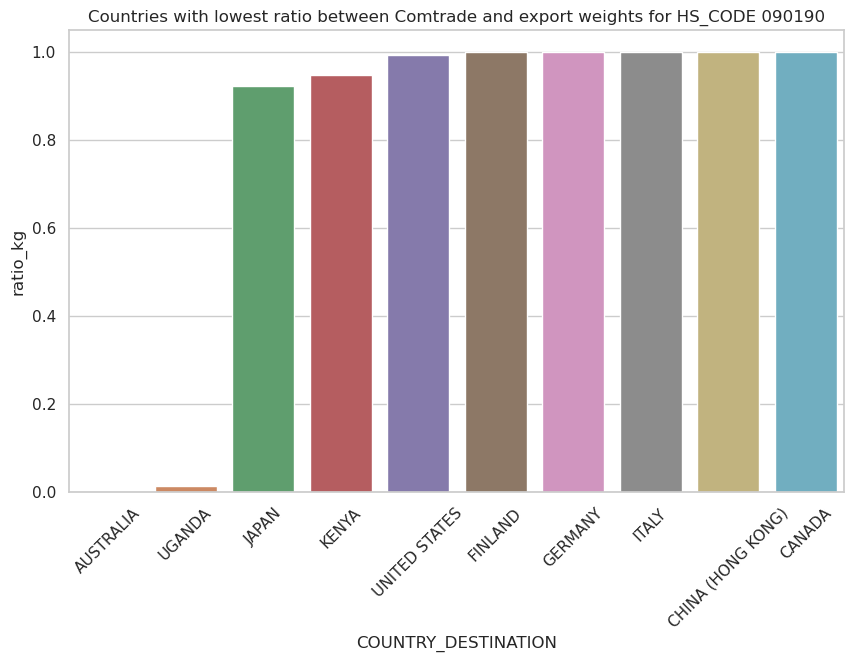

plt.title(f"Countries with lowest ratio between Comtrade and export weights for HS_CODE 090190")
plt.show()
plt.figure(figsize=(10, 6))
sns.barplot(data=top_10_countries_low_ratio_usd2, x="COUNTRY_DESTINATION", y="ratio_usd")
plt.xticks(rotation=45) # Rotate labels to avoid overlap

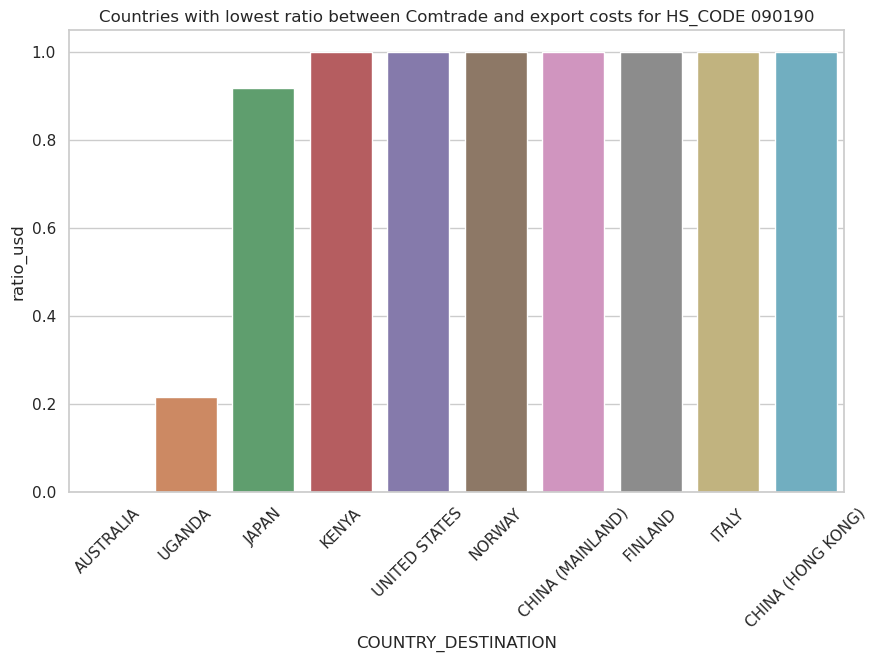

plt.title(f"Countries with lowest ratio between Comtrade and export costs for HS_CODE 090190")
plt.show()


When checking the records, we note: * the only record for '090190' from AUSTRALIA is a 1kg shipment with a cost of 5 USD vs. the corresponding 19,457 kg and 60,707 usd from Comtrade * for UGANDA, there are only 2 records for '090190' totalling 43,020kg and 18,939usd vs. 3,449,020kg and 88,172usd from Comtrade
Leaving these records (previously I removed them, but decided to keep them after talking with the team)
# export_data with COUNTRY_DESTINATION 'AUSTRALIA' or 'UGANDA', and with 'HS_CODE' '090190'
export_data_australia_uganda = export_data[
((export_data["COUNTRY_DESTINATION"] == "AUSTRALIA")
| (export_data["COUNTRY_DESTINATION"] == "UGANDA"))
& (export_data["HS_CODE"] == "090190")
]
export_data_australia_uganda
| DATE | MONTH | HEADING | HS_CODE | COUNTRY_DESTINATION | GROSS_WEIGHT | NET_WEIGHT | FOB_VALUE_IN_USD | FOB_VALUE_IN_TZS | UNIT | ... | DECLARED_CUSTOMS_VALUE_TZS | ASSESSED_CUSTOMS_VALUE_TZS | YEAR | DAY | EXPORTER_NAME_ORIGINAL | EXPORTER_ID | EXPORTER_GROUP | tzs_per_usd | exchangerate_z_score | usd_per_kg | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1353 | 2020-11-01 | 11 | 901 | 090190 | UGANDA | 16020.6 | 16020.6 | 7689.6 | 17580404.9 | KGM | ... | 17580404.903 | 17580404.903 | 2020 | 1 | NGARA FARMERS COOPERATIVE SOCIETY LTD | 15596487 | NGARA FARMERS COOPERATIVE SOCIETY LTD | 2286.2574 | -0.000026 | 0.479982 |
| 1355 | 2020-11-17 | 11 | 901 | 090190 | UGANDA | 27000.0 | 27000.0 | 11250.0 | 25720507.12 | KGM | ... | 25720507.125 | 25720507.125 | 2020 | 17 | KARAGWE DISTRICT CO-OPERATIVE UNION LIMITED | 15596400 | KARAGWE DISTRICT CO-OPERATIVE UNION LIMITED | 2286.2673 | 0.67447 | 0.416667 |
| 1559 | 2020-12-28 | 12 | 901 | 090190 | AUSTRALIA | 1.0 | 1.0 | 5.0 | 11435.5 | KGM | ... | 11435.495 | 11435.495 | 2020 | 28 | NASRA OTHMAN | 15596781 | NASRA OTHMAN | 2287.1 | 58.081759 | 5.0 |
3 rows × 51 columns
comtrade_data[
((comtrade_data['COUNTRY_DESTINATION'] == 'UGANDA') |
(comtrade_data['COUNTRY_DESTINATION'] == 'AUSTRALIA')) &
(comtrade_data['HS_CODE'] == '090190')]
| COUNTRY_DESTINATION | HS_CODE | comtrade_kg | comtrade_usd | usd_per_kg | |
|---|---|---|---|---|---|
| 63 | AUSTRALIA | 090190 | 19457.0 | 60707.71 | 3.120096 |
| 82 | UGANDA | 090190 | 3449020.6 | 88172.98 | 0.025565 |
Note that additionally, 'JORDAN', 'NAMIBIA' and 'RWANDA' are in Comtrade but not in the export data
comtrade_countries = comtrade_data["COUNTRY_DESTINATION"].unique()
export_countries = export_data["COUNTRY_DESTINATION"].unique()
comtrade_countries_not_in_export = [
country for country in comtrade_countries if country not in export_countries
]
print(f"\n Note that the following countries are in Comtrade but not in the export data: {comtrade_countries_not_in_export}")
Note that the following countries are in Comtrade but not in the export data: ['JORDAN', 'NAMIBIA', 'RWANDA']
