Welcome to Candyland!

Candyland is a "mock" supply chain example to illustrate the SEI-PCS tool.

Problem Description

Candyland is an island in a secret location deep in the Pacific ocean, with a climate perfectly suited to candyflower plantations. These magical plants produce candyfruit, which can be refined into tasty candy. There is hot demand for both candyflowers and candy in the international market, which has triggered a rapid expansion of candyflower plantations. There is such demand for these plantations that significant quantities of native rainforest is being cleared to make way for them. The Candyland rainforest is incredibly ancient and biodiverse, and home to all sorts of species found only on Candyland.

The Candyland government is aware of the problem and has made some data publicly available with the aim of increasing transparency in the supply chain:

• The division of the island into administrative areas called "muncipalities".
• The production volumes of and levels of deforestation caused by candyfruit, at a municipal level.
• Registers of the various privately-held assets used in the candy supply chain: plantations, storage silos, and processing factories.
• Customs declarations showing the export of Candy to the international market.

Trase believes that the modelling of Candyland is a feasible problem because deforestation indicators are at municipal level. We wish to identify the municipality of production for the candy and candyflower exports using the SEI-PCS approach.

To model the supply chain we make the following simplifying assumptions that we believe are justified:

1. Candyflowers are produced on plantations wholly contained within individual municipalities, and are harvested annually.
2. After harvest the candyflower may be stored in storage silos; and may then be passed via processing factories where it is converted to candy. However it can also skip one or both of these steps.
3. Harvest, storage, processing, export, and the government's data on attributable deforestation occur wholly within individual years. There is no storage of the candyflower for export next year, for example.
4. The processing of candyflower to candy is lossless: one kilogram of candyflower becomes one kilogram of candy.

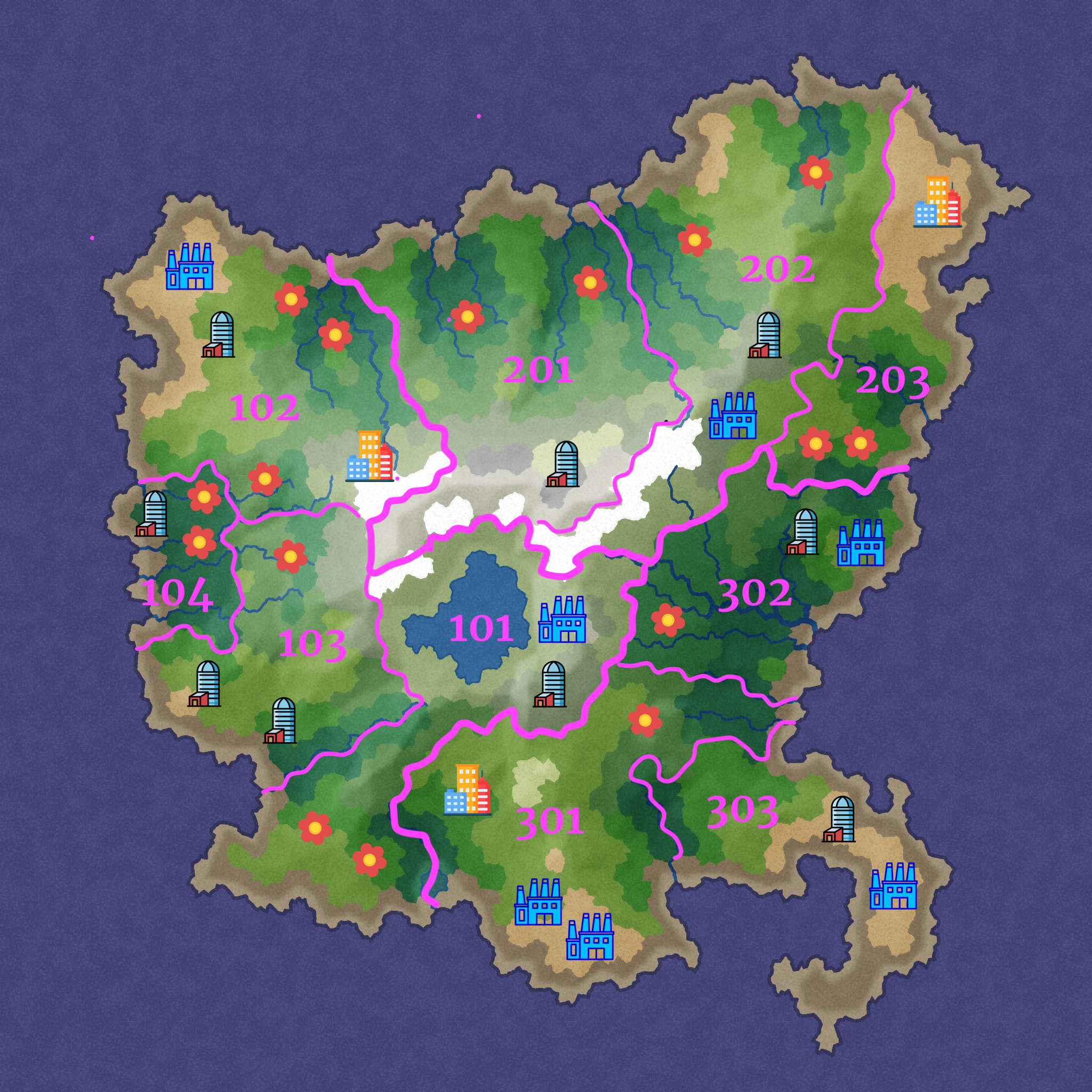

Map of Candyland

Candyland has three states in which the municipalities are divided. For complex geographic and economic reasons there is a mixed distribution of farms, silos, factories, and offices that form the candyflower supply chain:

Datasets provided by the Candyland government

Distance matrix (cost.csv)

Column	Type	Note
origin	string	Municipality code
destination	string	Municipality code
cost	int	The distance in kilometres between the centroid of the "origin" municipality to the centroid of the "destination" municipality

This data is provided for every pair of municipalities on the island.

Municipalities (municipality.csv)

Column	Type	Note
code	string	Unique identifier
name	string	Human-readable name

Production and Deforestation (production.csv)

Production and deforestation data is available at a municipality level.

Column	Type	Note
municipality	string	Municipality code
vol	int	Volume in kilograms of candyflower produced in this municipality
deforestation	int	Area in hectares of deforestation attributable to candyflower

Company Assets (asset.csv)

There are many companies that operate in Candyland. We have access of a list of "assets" for every one of them

Column	Type	Note
identifier	string	Unique identifier for the asset
level	int	What kind of asset it is, where 1 = plantation, 2 = storage, 3 = processing factory, and 5 = other activites, such as an administrative office
company	string	Legal name for the company that owns the asset
municipality	string	Code of the municipality in which the asset resides

Customs Declaration (flows.csv)

Column	Type	Note
importer	string	The legal entity that is importing the candy or candyflower in to the destination country
port	string	Port of export on candyland
asset	string	The identifier of the last known asset that the candy or candyflower passed through before being exported
ncm	string
fob	string	Value in dollars of the shipment
country	string	Country of destination
vol	int	Volume in kilograms of the shipment
